What is PCBColorizer?

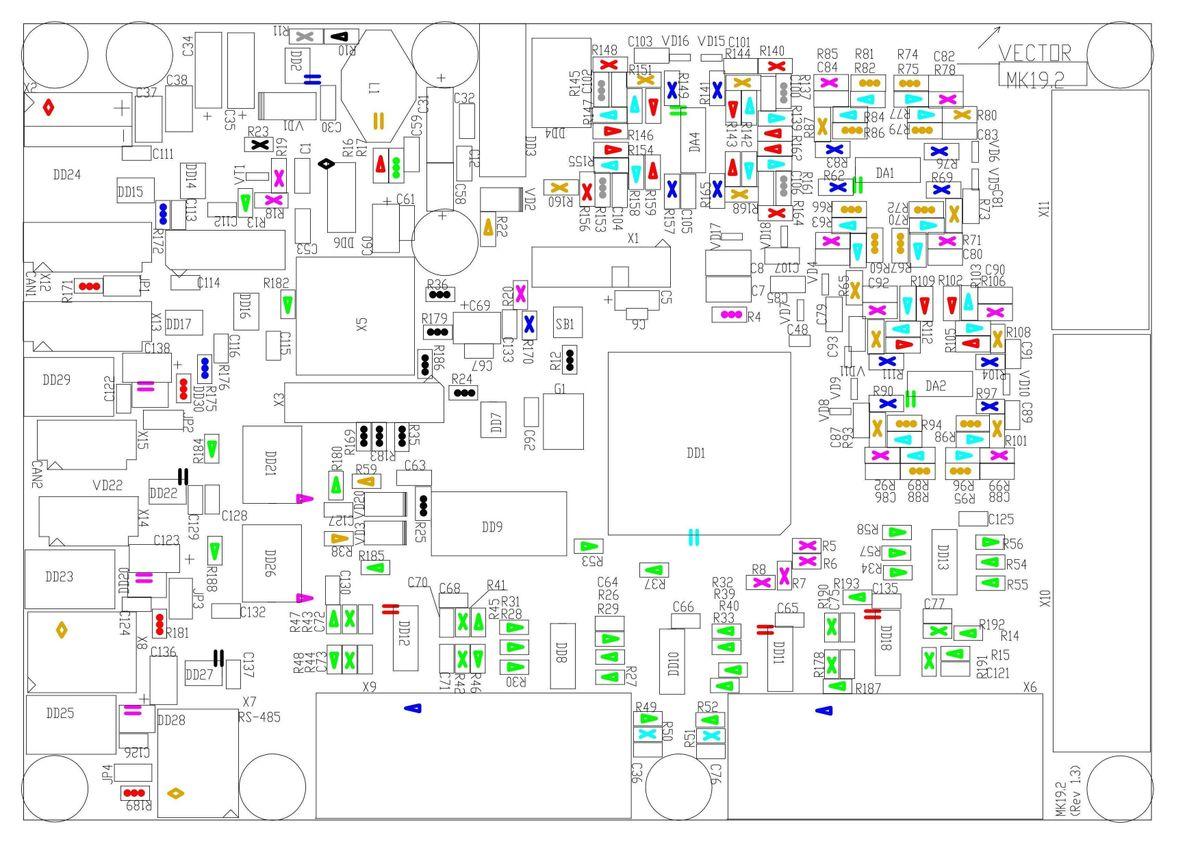

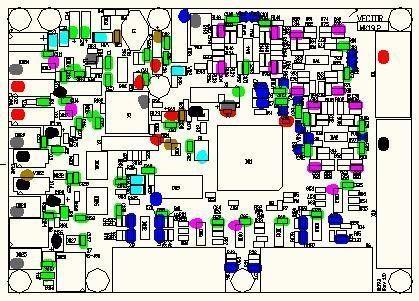

The application offers a seamless solution for automatically coloring printed circuit boards, streamlining the installation process. By leveraging input files containing information about the printed circuit board, generated through P-CAD, the program applies a unique color and style to each type of component. This simplifies the visual identification of individual components on the board, making it easier to navigate and install the circuit. Additionally, the program generates a comprehensive text list that associates the visual markers on the circuit board with the corresponding component types, further enhancing the clarity and efficiency of the installation process
Highlights
- Automatic color assignment for printed circuit board components
- Unique color and style for each component type for easy visual identification
- Generation of a text list that maps visual markers to component types
- Compatibility with P-CAD generated circuit board files
- Streamlined installation process through improved component organization and visibility
Platforms
- Windows
Languages
- English
