VisualGPSView

What is VisualGPSView?

VisualGPSView is a comprehensive application designed to provide users with a detailed graphical representation of NMEA 0183 data. The program supports both GPS and GLONASS satellite systems, enabling users to visualize the status and performance of their positioning and navigation systems

Highlights

• Azimuth and Elevation Plot: Users can view all satellites in view, including their pseudo-random numbers (PRNs), azimuths, and elevations, allowing for detailed analysis of satellite coverage and signal reception

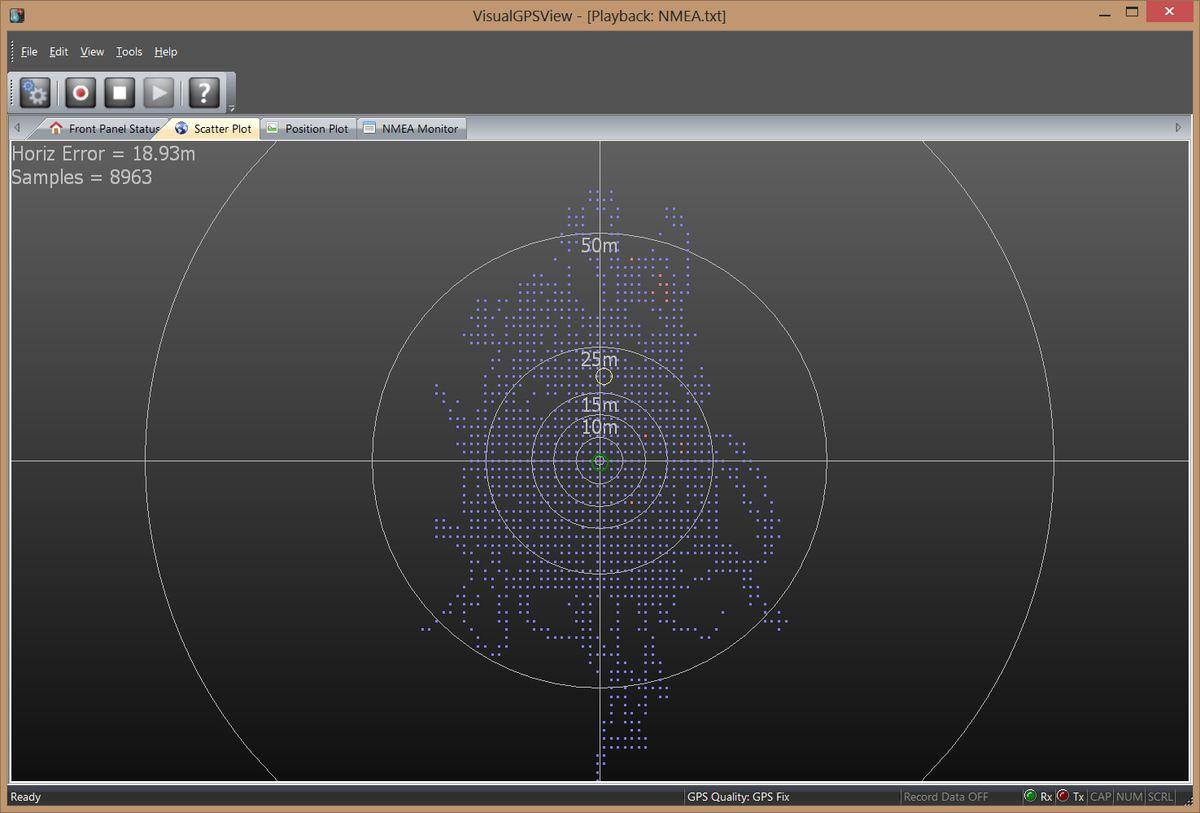

• Scatter Plot: The application offers a scatter plot feature, which displays individual position samples referenced to various reference types, such as the next sample, average, or user-defined
• Signal Quality/SNR Window: Users can monitor the signal-to-noise ratios (SNRs) of the satellites in view, with the signal quality window adjusting dynamically to accommodate the number of satellites
• Position Plot: VisualGPSView enables users to track latitude, longitude, and altitude averages, providing a comprehensive view of the position data
• NMEA Command Monitor: The program allows users to view the NMEA sentences as they are received, facilitating real-time monitoring and troubleshooting
• NMEA Recording and Playback: VisualGPSView offers the ability to record NMEA data directly to a file, as well as the option to read and playback NMEA data from a file, enabling users to analyze historical positioning and navigation data.
